Double Pitch Roof Hard Extruded Aluminium Frame Tents , 15 x 40M Outdoor Party Tents

Yashang Tents Shenzhen Co., Ltd
Contact Now

Double Pitch Roof Hard Extruded Aluminium Frame Tents , 15 x 40M Outdoor Party Tents

Brand Name : Yashang

Model Number : AFT23

Certification : ISO, CE, TUV, COC, SONCAP etc.

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T, L/C, West Union, MoneyGram

Supply Ability : 5000~10000sqm per month

Packaging Details : membrane film, PVC bags, steel cages

Delivery Time : 15 working days

Frame : 6061/T6 Hard Extruded Aluminum Alloy

Roof : 850gsm waterproof pvc fabric

Connector : Hot Dipped Galvanized Steel

Wall : White fabric wall

Tent Size : 15 x 40M

Utilization : 100 percent utilization

Contact Now

Double Pitch Roof Hard Extruded Aluminium Frame Tents , 15 x 40M Outdoor Party Tents

Double pitch tent has an even more ample covered space than A-frame tents. In this tent project, the 15m wide 40m length double pitch aluminum structure tent is built for outdoor commercial party. The standard double pitch exhibition hall tents from Yashang are available in widths 15m, 20m, and 25m right now. Of course, our powerful team of professional experts can also tailor a double pitch frame tent structure based on your individual requirements and unique application.

Please contact with us directly to learn about the detailed specification of different tent projects, because the data in the form may not be updated in time.

Tent Size: 15m x 40m Tent Materials: Hard extruded aluminum alloy (framework)
Span Width: 15m Polyester textile fabric cover (top and wall)
Side Height: 4.5m Galvanized steel (connecting parts)
Top Height: 7.4m Tent Configurations: Aluminum framework
Bay Distance: 5m Fabric roof cover
Longest Part: 6.5m Fabric wall
Roof Pitch: 45° Fabric door
Main Profile: 166 x 88 x 3mm Decorative lining system
Gable Post Profile: 166 x 88 x 3mm Energy-saving lighting system
Purlin Profile: 60 x 60 x 2mm Tent Packaging: Membrane film for long aluminum parts
Hang Tube Profile: 100 x 80 x 2mm PVC bags for fabric parts
Snow Load: 0.15kN/m² Steel cages for steel parts
Wind Load: 0.5kN/m² Tent Fixing Solution: Expansion screws for concrete ground (standard)
Tent Gross Weight: 4273kgs Steel peg nails for soft grass/sand land (optional)
Tent Total Volume: 13cbm Load Plate for undamagable ground (optional)
Setup Time: 8 people 1 to 2 days Installation Support: Installation instructional manual & video
Tent HS code: 6306220090 On-site installation guide
Tent Lifespan: Aluminum part ≥ 25~30 years Factory installation training
PVC fabri ≥ 5~8years Free Tools Configured: Y-pole, Spanner, Ropes, Hammers, Ladders

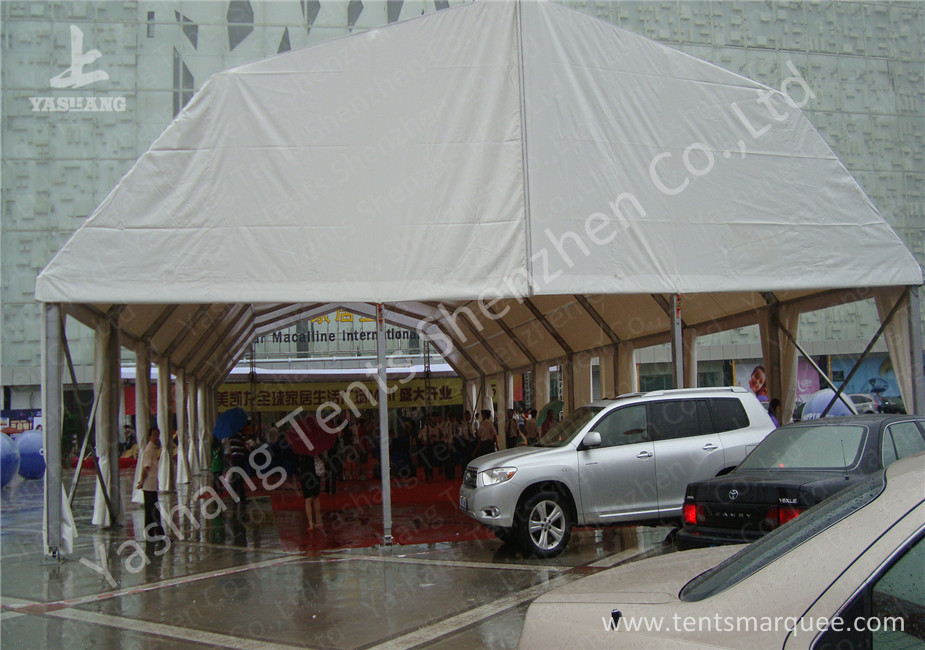

The aluminum alloy framed tent can be built in a short period, and can be fast moved away for repeated use in different places. The double pitch aluminum framed structure party tent comes with a bay distance of 5m, with all wall fabrics which can easily drawn open for convenient entrance.
Double Pitch Roof Hard Extruded Aluminium Frame Tents , 15 x 40M Outdoor Party Tents

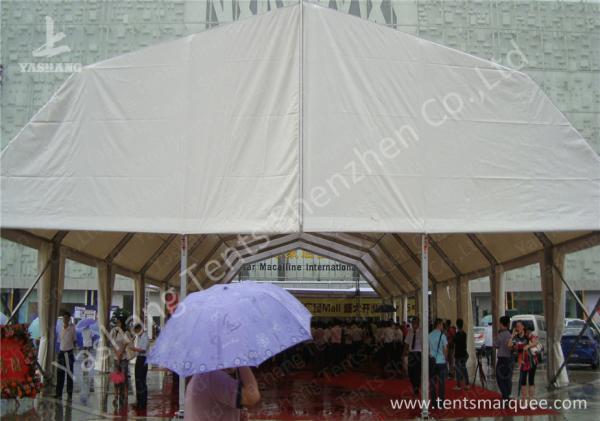

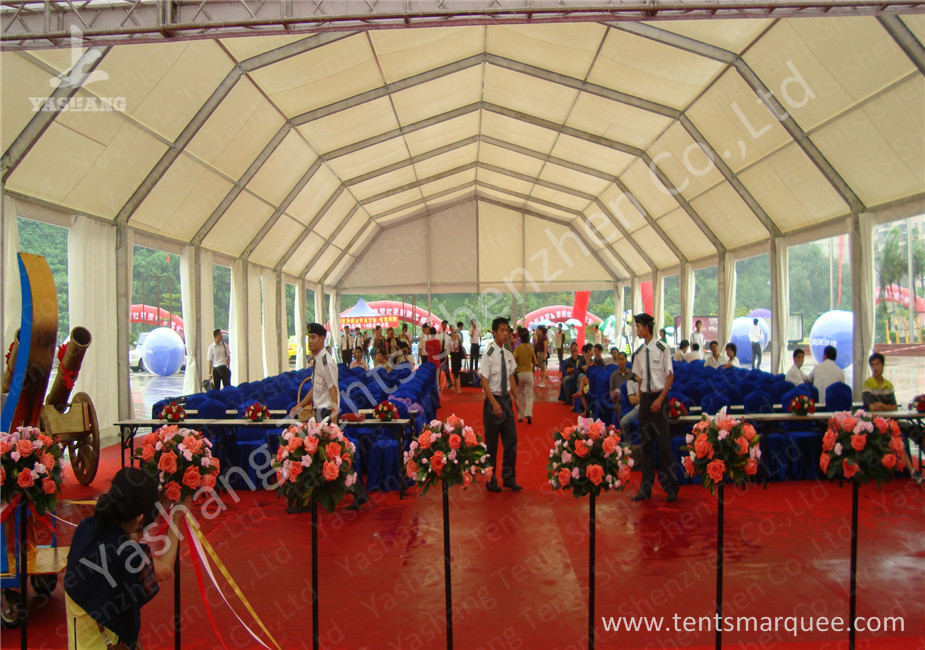

The ample space covered by the 15m double pitch frame tent is much larger than taht covered by the same width of A-frame tent. There is no obstacle upright columns or poles inside the tent, so that the interior space can be 100% used.
Double Pitch Roof Hard Extruded Aluminium Frame Tents , 15 x 40M Outdoor Party Tents
The aluminum tent structures have few requirement on the ground as long as it is relatively flat and even. The aluminum profile tent can be fast erected up on either concrete ground, sand land or grassland. Contact us now to know more about the differences among the different tent fixation solutions.
