30X150M large exhibition tent , Square car show tent 850gsm PVC Fabric Cover

Name: 30X150M large exhibition tent Square car show tent 850gsm PVC Fabric Cover
Brand: Yashang
Price: 1 USD

30X150M large exhibition tent , Square car show tent 850gsm PVC Fabric Cover Manufactures

Brand Name : Yashang

Model Number : ET

Certification : ISO, CE, TUV, COC, SONCAP etc.

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T, L/C, West Union, MoneyGram

Supply Ability : 5000~10000sqm per month

Packaging Details : membrane film, PVC bags, steel cages

Delivery Time : 30 work days

Frame : 6061/T6 Hard Pressed Extruded Aluminum

Cover : 850gsm Double Layer PVC-coated Fabric

Connector : Hot Dipped Galvanized Steel

Wall : Soft White PVC Wall

Tent Size : 30 x 150M

Application : Outdoor Exhibitions

Contact Now

30X150M large exhibition tent , Square car show tent 850gsm PVC Fabric Cover

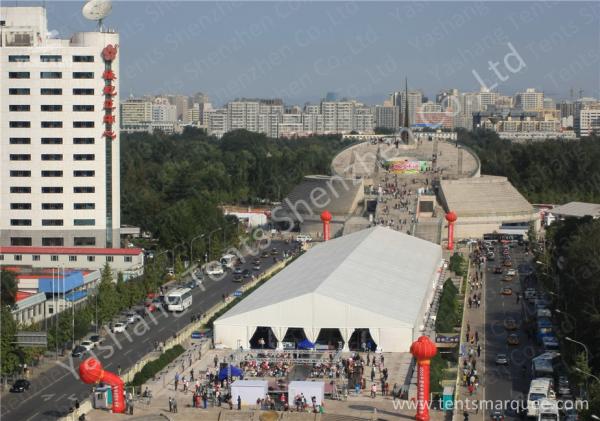

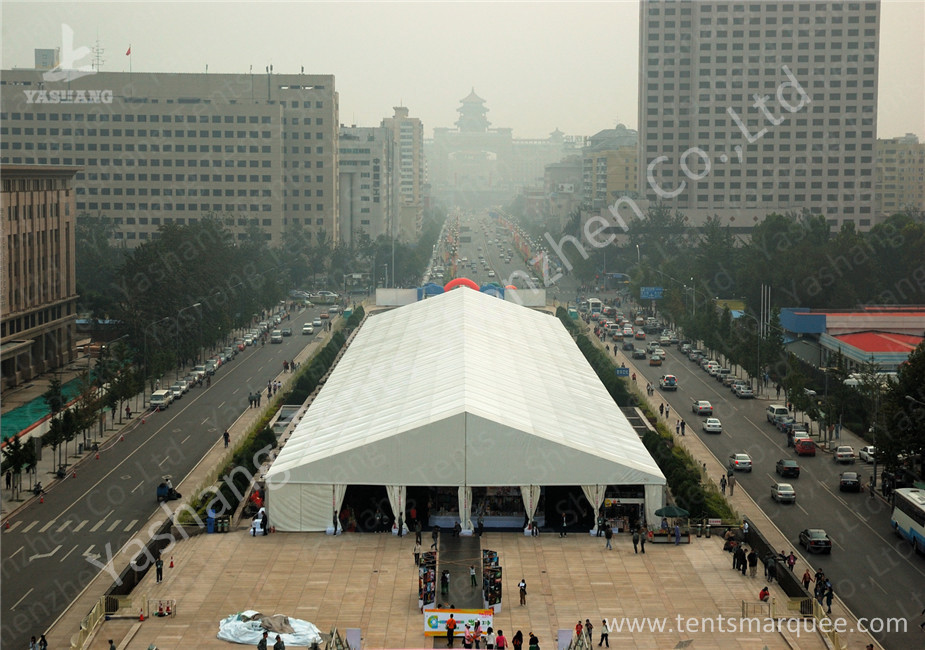

This 30x150m large square tent is set up for exhibition events. The tent consists of three parts, one is the main frame which is made of anodized aluminum alloy, one is the cover which is normally made of 850gsm PVC fabric and the another one is the connection part which is made of galvanized steel. The tent is widely used nowadays in the parties, weddings, exhibitions, ceremonies and industry wearhouses, because the tent is fixable and portable.

Please contact with us directly to learn about the detailed specification of different tent projects, because the data in the form may not be updated in time.

Tent Size:	30m x 150m	Tent Materials:	Hard extruded aluminum alloy (framework)
Span Width:	30m		Polyester textile fabric cover (top and wall)
Side Height:	4m		Galvanized steel (connecting parts)
Top Height:	8.9m	Tent Configurations:	Aluminum framework
Bay Distance:	5m		Fabric roof cover
Longest Part:	10m		Fabric wall
Roof Pitch:	18°		Glass door with canopy
Main Profile:	250 x 120 x 4mm		Decorative lining system
Gable Post Profile:	203 x 112 x 4mm		Energy-saving lighting system
Purlin Profile:	80 x 80 x 2mm	Tent Packaging:	Membrane film for long aluminum parts
Hang Tube Profile:	100 x 80 x 2mm		PVC bags for fabric parts
Snow Load:	0.15kN/m²		Steel cages for steel parts
Wind Load:	0.5kN/m²	Tent Fixing Solution:	Expansion screws for concrete ground (standard)
Tent Gross Weight:	TBC		Steel peg nails for soft grass/sand land (optional)
Tent Total Volume:	TBC		Load Plate for undamagable ground (optional)
Setup Time:	8 people 3~4 days	Installation Support:	Installation instructional manual & video
Tent HS code:	6306220090		On-site installation guide
Tent Lifespan:	Aluminum part ≥ 25~30 years		Factory installation training
	PVC fabri ≥ 5~8years	Free Tools Configured:	Y-pole, Spanner, Ropes, Hammers, Ladders

With different spans, the aluminum profiles are different. Generally speaking, the larger tent width, the larger aluminum alloy profile is. Of course, the cost will be higher for the larger span tents. When the width is fixed, the length of the tents can be extended indefinitely.
30X150M large exhibition tent , Square car show tent 850gsm PVC Fabric Cover

The illumination system in the tent structure can be designed accordding to your requirements.

30X150M large exhibition tent , Square car show tent 850gsm PVC Fabric Cover
Would you like to know more information about our tent structures? Contact us in advance.
