850gsm PVC Fabric Cover custom events tent Aluminium Alloy UV Resistant

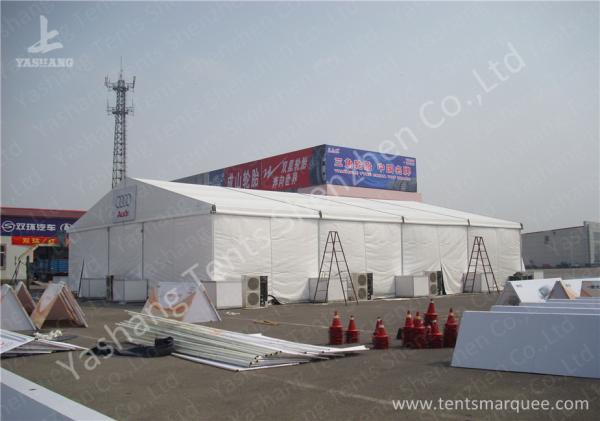

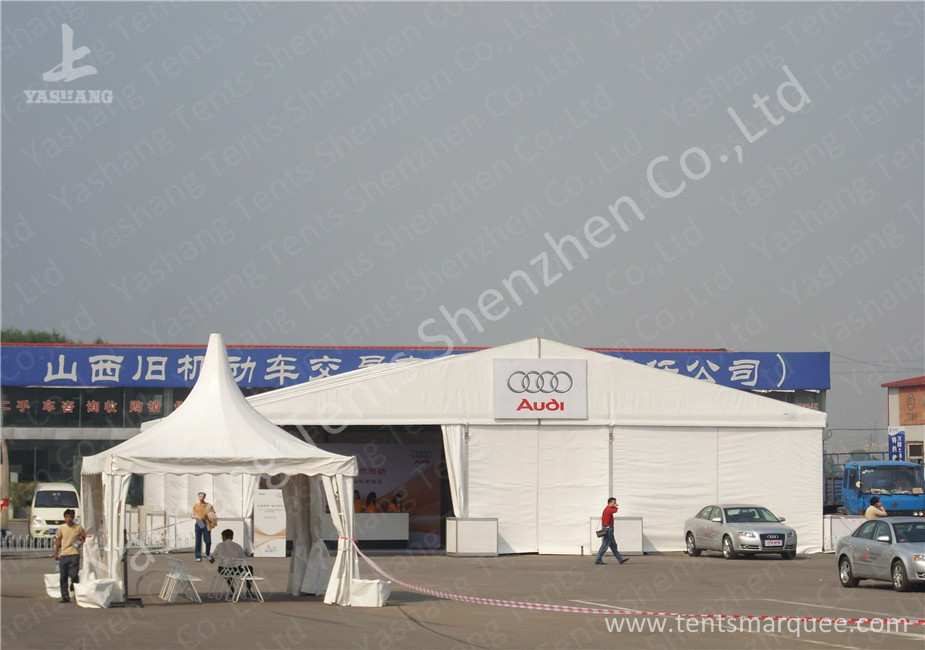

This is a 15m wide aluminum alloy frame tent structure built for the AUDI exhibition. Generally speaking, the tent structure is made of hard pressed extruded aluminum alloy profile and double layer PVC coated polyester textile roof cover and gable wall and sidewall cover. The fabric roof cover is 850g per square meter while the wall fabric cover is usually 650g per meter. The fabric of 850g per square meter is lightproof while that of 650g per square meter is not lightproof. Of course, you can also choose the PVC fabric of 850g per square meter as your tent walls.
Please contact with us directly to learn about the detailed specification of different tent projects, because the data in the form may not be updated in time.
| Tent Size: | 15m x 20m | Tent Materials: | Hard extruded aluminum alloy (framework) |
| Span Width: | 15m | | Polyester textile fabric cover (top and wall) |
| Side Height: | 4m | | Galvanized steel (connecting parts) |
| Top Height: | 6.4m | Tent Configurations: | Aluminum framework |
| Bay Distance: | 5m | | Fabric roof cover |
| Longest Part: | 7.9m | | Fabric wall |
| Roof Pitch: | 18° | | Glass door with canopy |
| Main Profile: | 166 x 88 x 3mm | | Decorative lining system |
| Gable Post Profile: | 166 x 88 x 3mm | | Energy-saving lighting system |
| Purlin Profile: | 60 x 60 x 2mm | Tent Packaging: | Membrane film for long aluminum parts |
| Hang Tube Profile: | 100 x 80 x 2mm | | PVC bags for fabric parts |
| Snow Load: | 0.15kN/m² | | Steel cages for steel parts |
| Wind Load: | 0.5kN/m² | Tent Fixing Solution: | Expansion screws for concrete ground (standard) |
| Tent Gross Weight: | 2580kgs | | Steel peg nails for soft grass/sand land (optional) |
| Tent Total Volume: | 7.3cbm | | Load Plate for undamagable ground (optional) |
| Setup Time: | 8 people 1 day | Installation Support: | Installation instructional manual & video |
| Tent HS code: | 6306220090 | | On-site installation guide |
| Tent Lifespan: | Aluminum part ≥ 25~30 years | | Factory installation training |
| | PVC fabri ≥ 5~8years | Free Tools Configured: | Y-pole, Spanner, Ropes, Hammers, Ladders |
There is a zip connecting the two sides of the border fabric walls. Of course, you can choose other connecting methods.
Normally, we design the tent structure with transparent PVC windows on the fabric walls. While for this car exhibition tent structure, the wall has no transparent PVC windows. The tent without windows is economical than that with windows. So if you want to save your cost, the tent without windows is better.

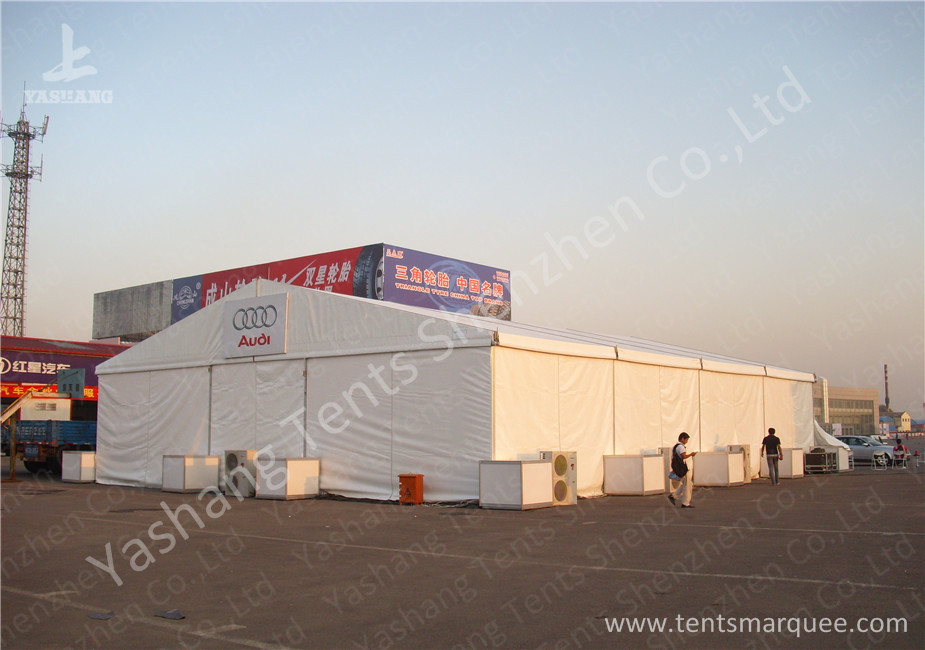

The A-frame fabric aluminum marquee tent for car exhibition is equipped with several air-conditioners to keep the circulation of air and adjust the indoor temperature. If you have any other requirements about the interior equipment, we can tailor for you, drawing on over 12 years of designing and manufacturing aluminum marquees. As for the fixation method, plate load with weight is fixed into the ground to ensure the safety and reliability of the tent, because the ground is undamagable. It' all up to you to decide which fixation method according to your ground condition.
Have you compared with different leading tent marquee manufacturers in China? Yashang will come first as the most competitive one! So subscribe it now!
Contact us now to know more about car exhibition tent structures...
