25x60 M Wind Resistant Temporary Industrial Storage Buildings With Suspension Cables
The large outdoor 25x60m wind resistant industrial warehouse tent is built on grassland with the fixed method of steel peg nails, and further reinforced by steel suspension cables at two lateral sides. The customer looks for such a temporary warehouse tent canopy simply to provide rain proof space for loading hayrick to truck in rainy days.
Please contact with us directly to learn about the detailed specification of different tent projects, because the data in the form may not be updated in time.
| Tent Size: | 25m x 60m | Tent Materials: | Hard extruded aluminum alloy (framework) |
| Span Width: | 25m | | Polyester textile fabric cover (top and wall) |
| Side Height: | 4m | | Galvanized steel (connecting parts) |
| Top Height: | 8m | Tent Configurations: | Aluminum framework |
| Bay Distance: | 5m | | Fabric roof cover |
| Longest Part: | 10.6m | | Fabric wall |
| Roof Pitch: | 18° | | Fabric door |
| Main Profile: | 203 x 112 x 4mm | | Decorative lining system |
| Gable Post Profile: | 166 x 88 x 3mm | | Energy-saving lighting system |
| Purlin Profile: | 60 x 60 x 2mm | Tent Packaging: | Membrane film for long aluminum parts |
| Hang Tube Profile: | 100 x 80 x 2mm | | PVC bags for fabric parts |
| Snow Load: | 0.15kN/m² | | Steel cages for steel parts |
| Wind Load: | 0.5 kN/m² | Tent Fixing Solution: | Expansion screws for concrete ground (standard) |
| Tent Gross Weight: | 10910kgs | | Steel peg nails for soft grass/sand land (optional) |
| Tent Total Volume: | 32cbm | | Load Plate for undamagable ground (optional) |
| Setup Time: | 8 people 2 to 3 days | Installation Support: | Installation instructional manual & video |
| Tent HS code: | 6306220090 | | On-site installation guide |
| Tent Lifespan: | Aluminum part ≥ 25~30 years | | Factory installation training |
| | PVC fabri ≥ 5~8years | Free Tools Configured: | Y-pole, Spanner, Ropes, Hammers, Ladders |

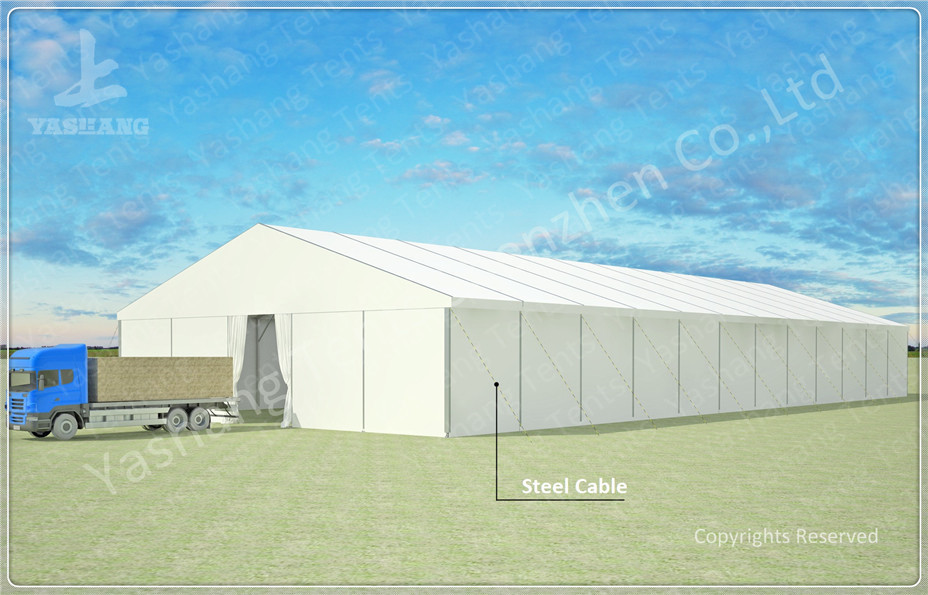

In order to further reinforce the wind resistance of the outdoor aluminum structure warehouse canopy tent, another economical solution is to configure additional steel suspension cables instead of changing a larger aluminum profile.

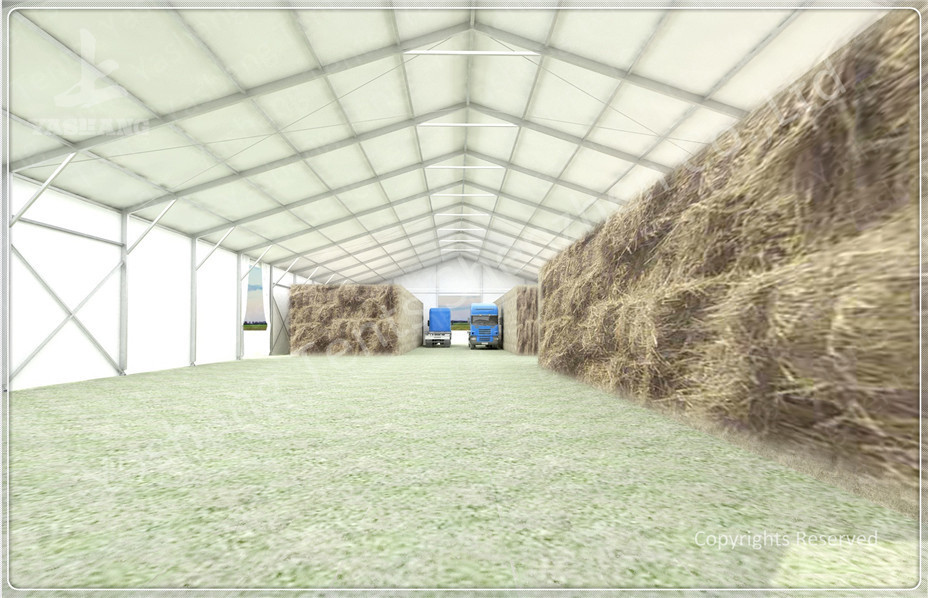

Given that the stacking height of hayrick inside the warehouse tent is around 4.5m, allowing trucks to drive in and out directly, the eave height of the temporary warehouse structure is tailor-made to be 5 meters high.
The safe modular outdoor warehouse tent structure with a clearspan aluminum frame design embraces a very good interior space. The unobstructed warehousing space can be 100% fully utilized. Also, the lightweight portable warehouse tent frame can be fast erected up for use, easily moved and conveniently transported to relocate for repeated use at hayrick harvest season.
Drawing on more than 12 years' rich experience and great expertise in designing and manufaturing aluminum tents, Yashang tents are made in China with quality performance materials. We deserve your trust and your generous orders.
Contact with us now for free consultation on aluminum outdoor warehouse tents...
