Outdoor Industrial Tent Structures Waterproof 100 km / h Wind Resistance

Yashang Tents Shenzhen Co., Ltd
Contact Now

Outdoor Industrial Tent Structures Waterproof 100 km / h Wind Resistance

  • 1
  • 2

Brand Name : Yashang

Model Number : ST04

Certification : ISO, CE, TUV, COC, SONCAP etc.

Place of Origin : China

Price : negotiable

Payment Terms : T/T, L/C, West Union, MoneyGram

Supply Ability : 5000~10000sqm per month

Delivery Time : 30 days

Packaging Details : membrane film, PVC bags, steel cages

MOQ : negotiable

Application : Industrial Storage and Warehouse

Frame : Hard Extruded Aluminum Profiles

Cover : Good Quality 850gsm PVC Fabric

Wind Resistance : 100Km/h

Waterproof : Waterproof

Fixing : Expansion Bolt

Tent Size : 20M x 75M

Service Life : more than 15 years

Contact Now

Outdoor Industrial Tent Structures Waterproof 100 km / h Wind Resistance

The 20x75m large aluminum frame industrial storage tent is built for the toy factory as their additional storage warehouse. Dedicated to developing oversea market, the factory grows up fast but still keeps a conservative attitude on expanding their scale. However, their warehouse problem is particularly prominent to deal with bulk orders at sales season. Inclined to light asset operation, the factory is anxious to find a low-cost expansion solution. Right under the situation, outdoor industrial tent solution with aluminum frame and white fabric canopy finally defeats other alternatives, which turns out to be the optimum warehousing solution with high cost performance.

Please contact with us directly to learn about the detailed specification of different tent projects, because the data in the form may not be updated in time.

Tent Size: 20m x 75m Tent Materials: Hard extruded aluminum alloy (framework)
Span Width: 20m Polyester textile fabric cover (top and wall)
Side Height: 4m Galvanized steel (connecting parts)
Top Height: 7.3m Tent Configurations: Aluminum framework
Bay Distance: 5m Fabric cover
Longest Part: 10.6m Ventilation Louver
Roof Pitch: 18° Tent Packaging: Membrane film for long aluminum parts
Main Profile: 203 x 112 x 4mm PVC bags for fabric parts
Gable Post Profile: 166 x 88 x 3mm Steel cages for steel parts
Purlin Profile: 60 x 60 x 2mm Tent Fixing Solution: Expansion screws for concrete ground (standard)
Number of Purlins: 6pcs Steel peg nails for soft grass/sand land (optional)
Hang Tube Profile: 100 x 80 x 2mm Load Plate for undamagable ground (optional)
Snow Load: 0.15kN/m² Installation Support: Installation instructional manual & video
Wind Load: 0.5kN/m² On-site installation guide
Tent Gross Weight: 10.1tons Factory installation training
Tent Total Volume: 32cbm Free Tools Configured: Y-pole, Spanner, Ropes, Hammers, Ladders
Setup Time: 8 people 2 to 3 days Tent Lifespan: Aluminum part ≥ 25~30 years
Tent HS code: 6306220090 PVC fabri ≥ 5~8years

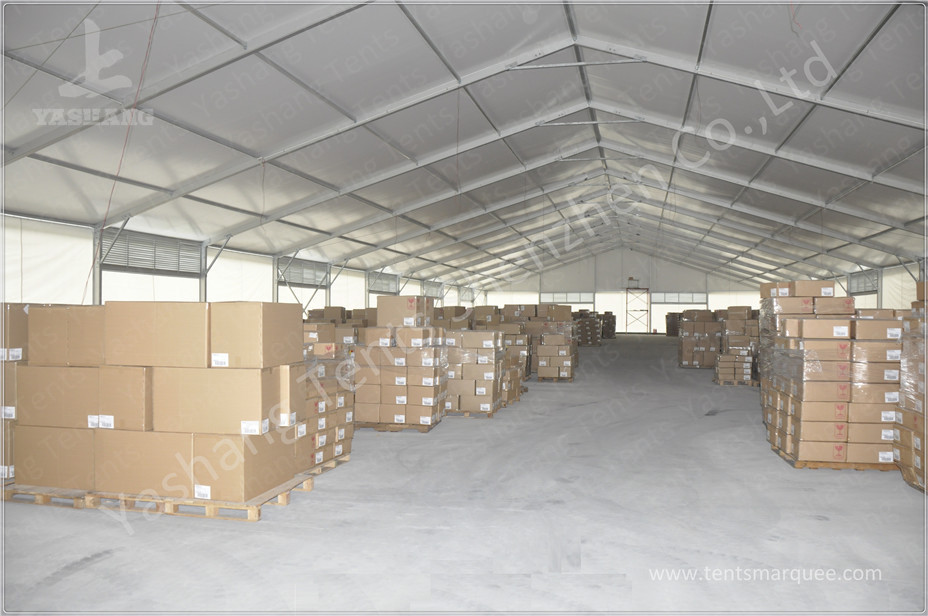

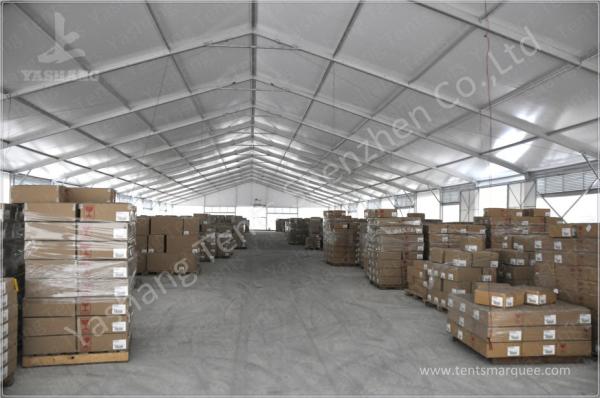

The aluminum frame warehousing industrial tent has an A-frame shape for water drainage with a clearspan interior space for 100% utilization. Bay distance can normally be 3m or 5m, while the standard side height is 4m, which can be customized to be 4.5m, 5m or 6m etc. The clear span tent structure allows the maximum utilization of interior space in the tent warehouse.

Outdoor Industrial Tent Structures Waterproof 100 km / h Wind Resistance

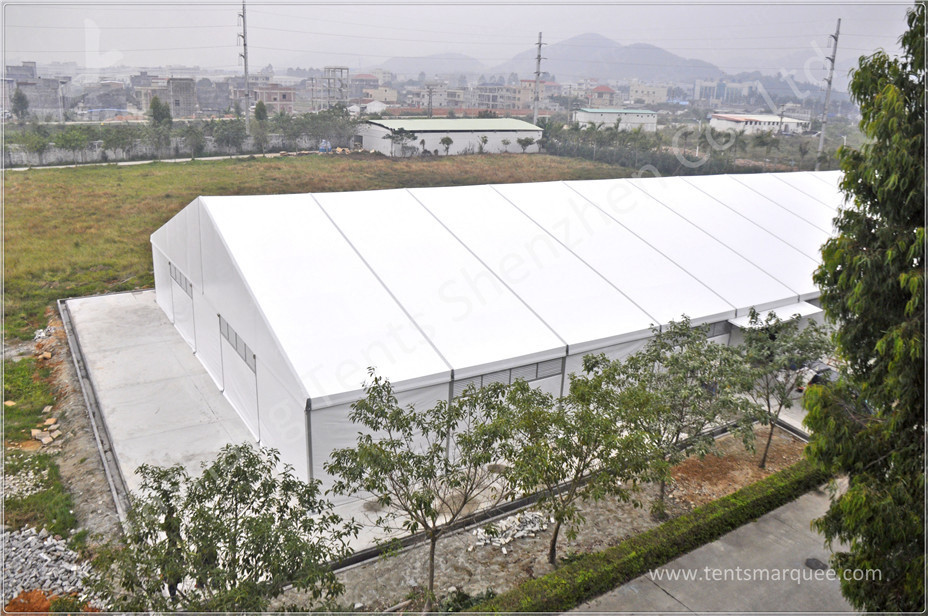

Generally, the aluminum frame warehouse tent can be built on almost any terrain, as long as the ground is relatively flat and level. Some goods require the ground to process hardening treatment and be waterproof, though some products can be stored on untreated ground directly. In this project, the foundation for the white canopy tent warehouse is 300mm cement ground with hardening treatment.

Outdoor Industrial Tent Structures Waterproof 100 km / h Wind Resistance

The large industrial tent canopy is built with superior quality materials, so safety and reliability can be guaranteed. Thanks to its modular design, the tent frame and white canopy can be assembled and dissembled quickly and easily. If you have any urgent bulk goods to store, you can take the industrial storage into consideration. Why not come to us now?
