Retail Trade Big Clear Span Marquee Tent With A Frame Roof / Galvanized Steel Connector
The 20x100m large clearpan marquee tent is built as outdoor temporary supermarket and retail trading floor. Each year, during the second half year, the customer launches their retail sales promotion activities, and move the temporary supermarket marquee tent from one city to another. Since the frame marquee is a modular aluminum structure, it can be installed fast and can be easily taken down, so you can set up the aluminum tent marquee for use at any time you need. Also, its small size after disassembly facilitate a lot the transportation and storage, so you can move the aluminum structure to wherever you demand temporary space.
Please contact with us directly to learn about the detailed specification of different tent projects, because the data in the form may not be updated in time.
| Tent Size: | 20m x 100m | Tent Materials: | Hard extruded aluminum alloy (framework) |
| Span Width: | 20m | | Polyester textile fabric cover (top) |
| Side Height: | 4m | | Galvanized steel (connecting parts) |
| Top Height: | 7.3m | Tent Configurations: | Aluminum framework |
| Bay Distance: | 5m | | Fabric roof cover |
| Longest Part: | 10.6m | | ABS wall |
| Roof Pitch: | 18° | | Glass door |
| Main Profile: | 203 x 112 x 4mm | | Energy-saving lighting system |
| Gable Post Profile: | 166 x 88 x 3mm | | Decorative lining system |
| Purlin Profile: | 60 x 60 x 2mm | Tent Packaging: | Membrane film for long aluminum parts |
| Hang Tube Profile: | 100 x 80 x 2mm | | PVC bags for fabric parts |
| Snow Load: | 0.15kN/m² | | Steel cages for steel parts |
| Wind Load: | 0.5kN/m² | Tent Fixing Solution: | Expansion screws for concrete ground (standard) |
| Tent Gross Weight: | 13066kgs | | Steel peg nails for soft grass/sand land (optional) |
| Tent Total Volume: | 42cbm | | Load Plate for undamagable ground (optional) |
| Setup Time: | 8 people 2 to 3 days | Installation Support: | Installation instructional manual & video |
| Tent HS code: | 6306220090 | | On-site installation guide |
| Tent Lifespan: | Aluminum part ≥ 25~30 years | | Factory installation training |
| | PVC fabri ≥ 5~8years | Free Tools Configured: | Y-pole, Spanner, Ropes, Hammers, Ladders |
Tent materials have played an important role in guaranteeing the superior quality and overall reliability of the frame marquee tent structure, click here to find out what tent materials we use...

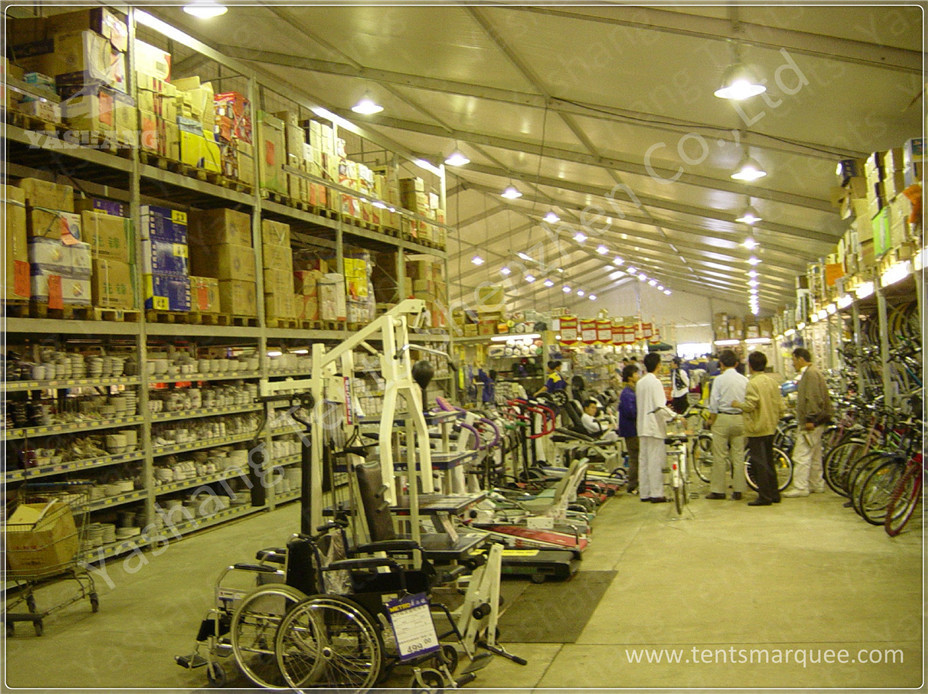

The large outdoor aluminum marquee for retail trade and sales is configured with sturdy solid ABS wall at front sides and corrugated sheet steel wall at other sides, for purpose of an elegant appearance, a better burglar-proof performance and a better cost performance.
The large outdoor temporary fabric structure has a very spacious interior space with an aluminum framework. Based on the interior space planning, tent side height can be tailor-made to adapt to the height of the storage racks.
Drawing on more than 12 years' rich experience and great expertise in designing and manufacturing aluminum tents, Yashang tents are made in China with quality performance materials. We deserve your trust and your immediate purchase.
