Array Ultraviolet White Fabric Cover Outdoor Event Tent Aluminum Profile

Name: Array Ultraviolet White Fabric Cover Outdoor Event Tent Aluminum Profile
Brand: Yashang
Price: 1 USD

Brand Name : Yashang

Model Number : EVT23

Certification : ISO, CE, TUV, COC, SONCAP etc.

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T, L/C, West Union, MoneyGram

Supply Ability : 5000~10000sqm per month

Packaging Details : membrane film, PVC bags, steel cages

Delivery Time : 15 work days

Frame : 6061/T6 Hard Extruded Aluminum Alloy

Cover : 850gsm UV Resistant PVC Fabric

Connector : Hot Dipped Galvanized Steel

Wall : Fabric Wall

Tent Size : 10x10M

Application : Outdoor Events and Activities

Contact Now

Array Ultraviolet White Fabric Cover Outdoor Event Tent Aluminum Profile

The array A-frame white fabric cover tent for outdoor events is composed of several tents of the size of 10m x 10m, extending into the size of 10m span x indefinite length according to the scale of your event.

Please contact with us directly to learn about the detailed specification of different tent projects, because the data in the form may not be updated in time.

Tent Size:	10m x 10m	Tent Materials:	Hard extruded aluminum alloy (framework)
Span Width:	10m		Polyester textile fabric cover (top and wall)
Side Height:	2.6m		Galvanized steel (connecting parts)
Top Height:	4.4m	Tent Configurations:	Aluminum framework
Bay Distance:	3m		Fabric roof cover
Longest Part:	5.4m		Transparent glass wall
Roof Pitch:	20°		Glass door with canopy
Main Profile:	84 x 48 x 3mm		Decorative lining system
Gable Post Profile:	84 x 48 x 3mm		Energy-saving lighting system
Purlin Profile:	40 x 56 x 2mm	Tent Packaging:	Membrane film for long aluminum parts
Hang Tube Profile:	40 x 40 x 2mm		PVC bags for fabric parts
Snow Load:	0.1kN/m²		Steel cages for steel parts
Wind Load:	0.3kN/m²	Tent Fixing Solution:	Expansion screws for concrete ground (standard)
Tent Gross Weight:	780kgs		Steel peg nails for soft grass/sand land (optional)
Tent Total Volume:	2.2cbm		Load Plate for undamagable ground (optional)
Setup Time:	8 people 0.5 day	Installation Support:	Installation instructional manual & video
Tent HS code:	6306220090		On-site installation guide
Tent Lifespan:	Aluminum part ≥ 25~30 years		Factory installation training
	PVC fabri ≥ 5~8years	Free Tools Configured:	Y-pole, Spanner, Ropes, Hammers, Ladders

The aluminum tent is of great quality, stability and reliability, with the framework of hard extruded aluminum alloy. Besides, the tent is UV-resistant, protecting people inside the tent from exposure to sun and rain. What's more, the tent can be rolocated from one place to another easily, because the modular structures are fast and easy to erect up and dismantle, allowing the reuse of the tent if the event venue changes.
Array Ultraviolet White Fabric Cover Outdoor Event Tent Aluminum Profile

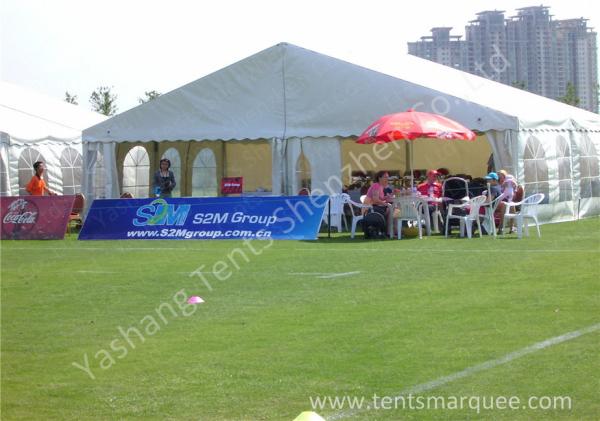

As for the ground, tents don't have strict standards for the ground. There are three methods: expansion screws for concrete land; steel peg nails for soft grass and sand land and loading plates with heavy loads for the ground that can't be damaged. In this project, the ground is grassland, so the steel peg nail is fixed into the grassland to ensure the stability and reliability of the tent structure.
Array Ultraviolet White Fabric Cover Outdoor Event Tent Aluminum Profile

If you want to customise an outdoor tent for your events, subscribe one from us immediately! Drawing on more than12 years' rich experience and great expertise in designing and manufacturing tents, Yashang will satisfy you with quality tailor-made tents.
