Clear Span No Center Large Canopy Tent Gable Pole Aluminum Alloy Frame
Clearspan sectional frame tents (Clearspan Marquees) are used in a wide variety of different applications. Being modular and rigid, they can be put up without the need for tensioning guy ropes and cover a range of sizes from 10m x 18m to a 10m span x indefinite length. The clearspan tent outdoors is for events.
Please contact with us directly to learn about the detailed specification of different tent projects, because the data in the form may not be updated in time.
| Tent Size: | 10m x 18m | Tent Materials: | Hard extruded aluminum alloy (framework) |
| Span Width: | 10m | | Polyester textile fabric cover (top and wall) |
| Side Height: | 2.6m | | Galvanized steel (connecting parts) |
| Top Height: | 4.4m | Tent Configurations: | Aluminum framework |
| Bay Distance: | 5m | | Fabric roof cover |
| Longest Part: | 5.4m | | Transparent glass wall |
| Roof Pitch: | 18° | | Glass door with canopy |
| Main Profile: | 84 x 48 x 3mm | | Decorative lining system |
| Gable Post Profile: | 84 x 48 x 3mm | | Energy-saving lighting system |
| Purlin Profile: | 40 x 40 x 2mm | Tent Packaging: | Membrane film for long aluminum parts |
| Hang Tube Profile: | 40 x 56 x 2mm | | PVC bags for fabric parts |
| Snow Load: | 0.1kN/m² | | Steel cages for steel parts |
| Wind Load: | 0.3kN/m² | Tent Fixing Solution: | Expansion screws for concrete ground (standard) |
| Tent Gross Weight: | 1060kgs | | Steel peg nails for soft grass/sand land (optional) |
| Tent Total Volume: | 3cbm | | Load Plate for undamagable ground (optional) |
| Setup Time: | 8 people 1~2 days | Installation Support: | Installation instructional manual & video |
| Tent HS code: | 6306220090 | | On-site installation guide |
| Tent Lifespan: | Aluminum part ≥ 25~30 years | | Factory installation training |
| | PVC fabri ≥ 5~8years | Free Tools Configured: | Y-pole, Spanner, Ropes, Hammers, Ladders |

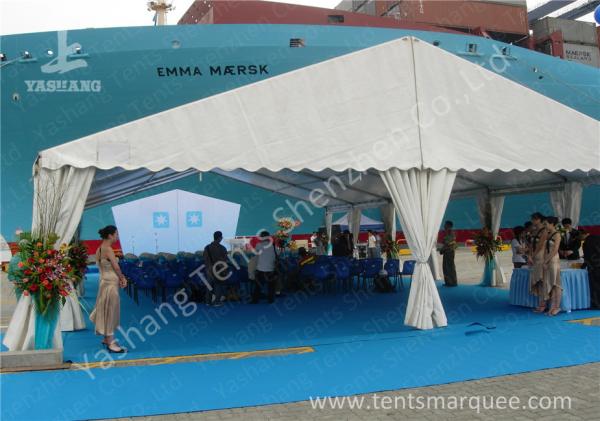

The A-frame clearspan aluminum structure without center gable pole is of total utilization, taking advantage of every space of the tent. To protect the inner space from ultraviolet ray and severe weather, the enclosure is all covered with polyester textile fabric. In addition, the fabric side wall is designed into curtains, which on one hand, the curtains can be drawn back to keep privacy of the event when required, on the other hand, they can be drawn aside to make the interior space bright.

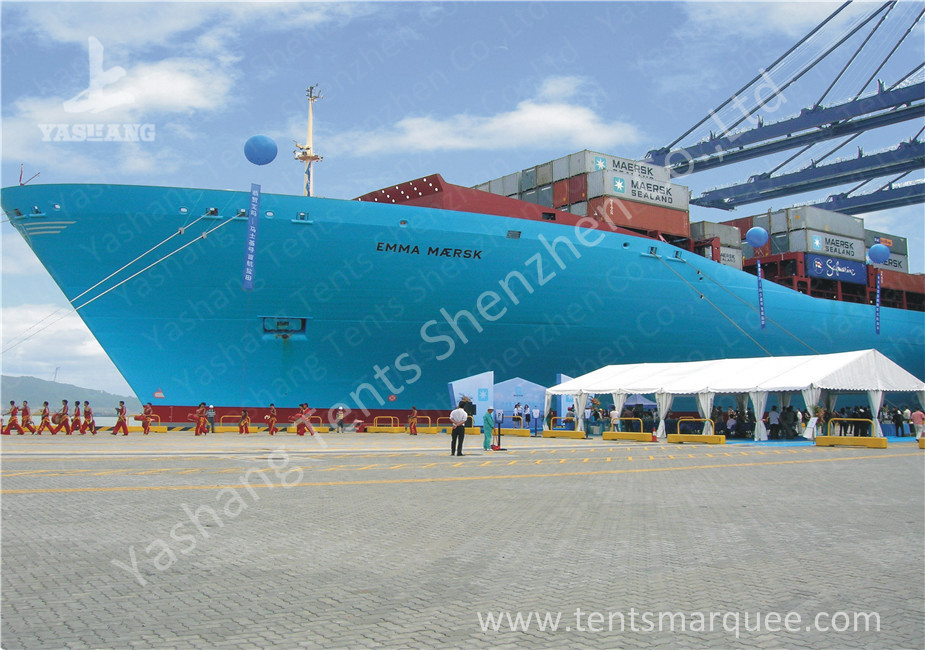

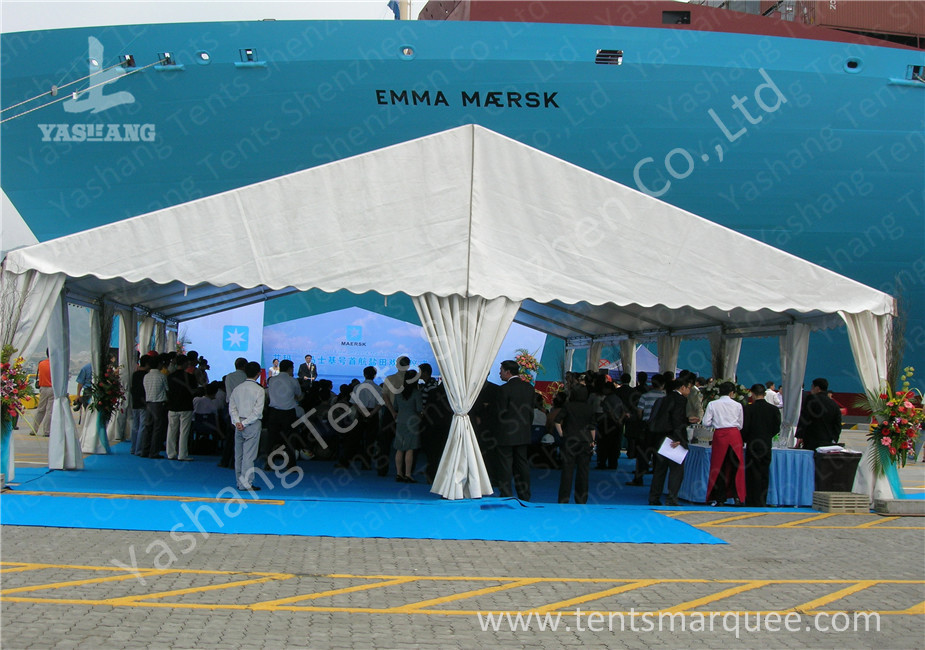

The floor of the interior event tent is covered with blue carpets the same color with the EMMA MAERSK Ship. With the custom design, the appearance of the tent looks more elegant. For a better event, the outdoor aluminum event tent plays an important role in providing a wonderful venue. With the convenience to erect up and dismantle a tent, the customer will save unneccessary worries about the venue.
Drawing on more than 12 years' rich experience and great expertise in designing and manufacturing marquees, Yashang Tents are made in China with quality performance materials.
Contact us now to know more details about the clearspan outdoor event tents.
