Corporate Product Show Aluminum Frame Tent , Lightweight Large Commercial Tent

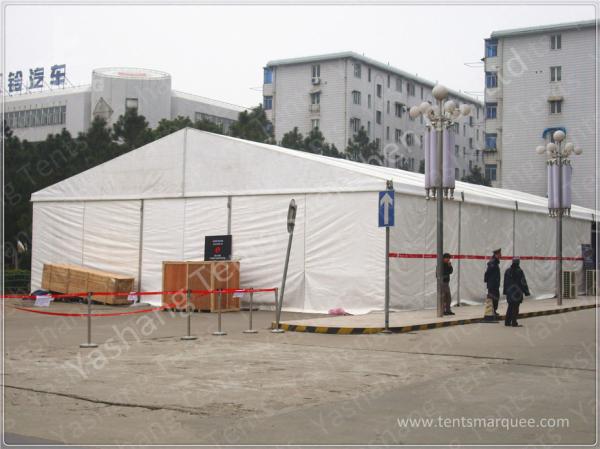

The white aluminum frame tent structure is built as a temporary show room of products and techniques. When it comes to product showroom, most people will think of a large traditional building of steel structure or concrete structure. However, in this tent project, the customer prefers a movable lightweight aluminum structure, simply because they need a portable showroom, which can be conveniently transported to their target markets and can be fast assembled and put into use within a short period of time.
This tempoary corporate showroom is fixed firmly onto the ground using weight plates.
Please contact with us directly to learn about the detailed specification of different tent projects, because the data in the form may not be updated in time.
| Tent Size: | 14m x 25m | Tent Materials: | Hard extruded aluminum alloy (framework) |
| Span Width: | 14m | | Polyester textile fabric cover (top and wall) |
| Side Height: | 4m | | Galvanized steel (connecting parts) |
| Top Height: | 6.4m | Tent Configurations: | Aluminum framework |
| Bay Distance: | 5m | | Fabric roof cover |
| Longest Part: | 7.9m | | Fabric wall |
| Roof Pitch: | 18° | | Glass door with canopy |
| Main Profile: | 166 x 88 x 3mm | | Decorative lining system |
| Gable Post Profile: | 166 x 88 x 3mm | | Energy-saving lighting system |
| Purlin Profile: | 60 x 60 x 2mm | Tent Packaging: | Membrane film for long aluminum parts |
| Hang Tube Profile: | 100 x 80 x 2mm | | PVC bags for fabric parts |
| Snow Load: | 0.15kN/m² | | Steel cages for steel parts |
| Wind Load: | 0.5kN/m² | Tent Fixing Solution: | Expansion screws for concrete ground (standard) |
| Tent Gross Weight: | 3000kgs | | Steel peg nails for soft grass/sand land (optional) |
| Tent Total Volume: | 9cbm | | Load Plate for undamagable ground (optional) |
| Setup Time: | 8 people 1 to 2 days | Installation Support: | Installation instructional manual & video |
| Tent HS code: | 6306220090 | | On-site installation guide |
| Tent Lifespan: | Aluminum part ≥ 25~30 years | | Factory installation training |
| | PVC fabri ≥ 5~8years | Free Tools Configured: | Y-pole, Spanner, Ropes, Hammers, Ladders |
The weather-proof white fabric show event tent is made by hard extruded maintenance free aluminum alloy profiles and double PVC-coated polyester textile, which is environmentally friendly, waterproof, uv-resistant and flame-retardant according to international standards.
As a professional Chinese tent manfacturer, we can customise a variety of aluminum frame tent buildings to meet different customers' demands. Tent widths can range from 3 meters up to 60 meters. Tent side height for big tents is normally 4m, but also can be customised to be 4.5m, 5m, 5.5m, 6m and so on.
As the first aluminum tent manufacturer in Shenzhen, Yashang tents are made in China with quality performance materials with competitive price and considerable service.
